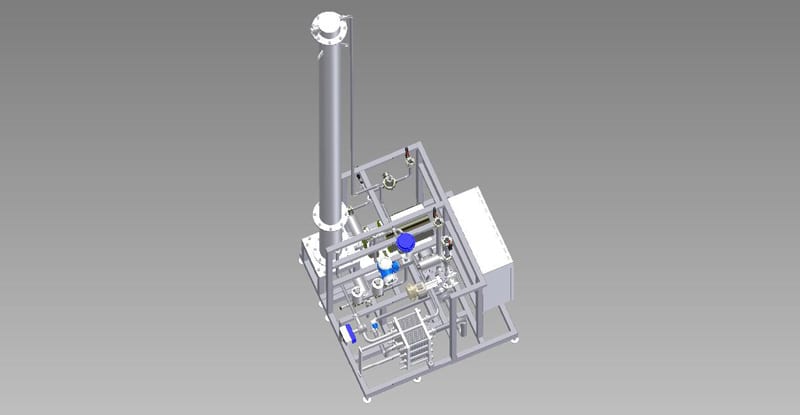

Cold Water Column Deaeration
For the production of quality beverages with long shelf life, and to prevent corrosion of boiler and piping systems, water needs to be deaerated.
Deaeration is performed at ambient temperature. The water is dispersed at the top of the column. The column contains densely packed, thin stainless steel sheets arranged in such way that the water takes multiple paths as it flows down through the column. This maximizes the transfer surface and the contact time between the water and the strip gas (CO2 or N2). The strip gas is fed into the bottom of the column and flows upwards inside it in counter current to the water.
The large partial pressure difference of O2 forces the oxygen out of the water into the gas phase. At the top of the column the removed oxygen leaves the system as a gas, together with the undissolved strip gas. The O2 content of the deaerated water is permanently monitored. The virtually oxygen free water is collected at the bottom of the column.
To avoid carbonation or nitrogenation of the water and for reduction of running costs, the skid can optionally be operated under vacuum and completely without strip gas.
Typical Technical Data
265 - 53,000 gal/h (10 - 2,000 hl/h)
100 ppb - < 10 ppb, lower on request
1.4301/AISI 304; 1.4404/AISI 316L; etc.
double column design for lower height
in-line measurements (e. g. O2, CO2)
- High precision OXYTRANS O2 sensor for process control
- Operation under vacuum and completely without strip gas possible
- Customized design; different automation levels
